11-8
Power-On Reset Circuitry
SV51013
2013.05.06
Power-On Reset Circuitry
The POR circuitry keeps the Stratix V device in the reset state until the power supply outputs are within the
recommended operating range.
A POR event occurs when you power up the Stratix V device until the power supplies reach the recommended
operating range within the maximum power supply ramp time, t RAMP . If t RAMP is not met, the Stratix V
device I/O pins and programming registers remain tri-stated, during which device configuration could fail.

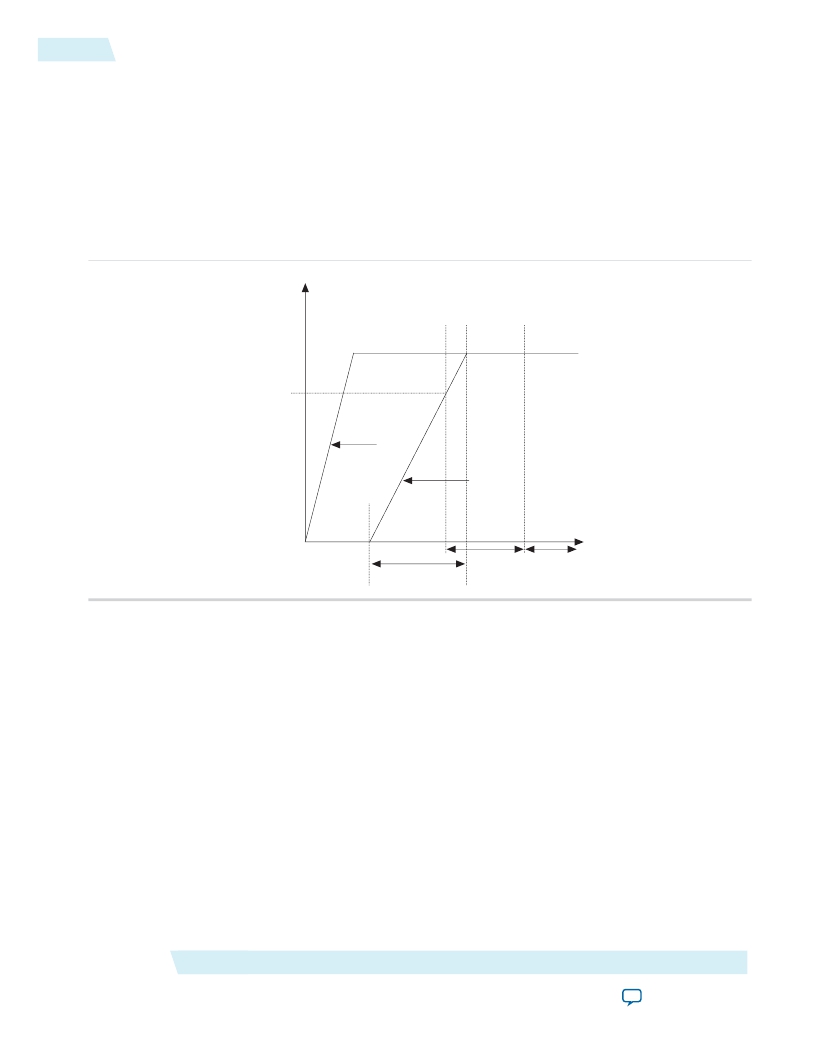

Figure 11-5: Relationship Between t RAMP and POR Delay
Volts
POR trip level
first power
supply
last power
supply
Time
t RAMP
POR delay
configuration
time
The Stratix V POR circuitry uses an individual detecting circuitry to monitor each of the configuration-related
power supplies independently. The main POR circuitry is gated by the outputs of all the individual detectors.
The main POR signal is asserted when the power starts to ramp up. This signal is released after the last ramp-
up power reaches the POR trip level during power up.
In user mode, the main POR signal is asserted when any of the monitored power goes below its POR trip
level. Asserting the POR signal forces the device into the reset state.
The POR circuitry checks the functionality of the I/O level shifters powered by the V CCPD and V CCPGM
power supplies during power-up mode. The main POR circuitry waits for all the individual POR circuitries
to release the POR signal before allowing the control block to start programming the device.
Altera Corporation
Power Management in Stratix V Devices
Send Feedback
